Hotel Chandelier Shop Drawing Review: 7 Critical Checkpoints is a project-control topic before it is a decorative lighting topic. The buyer is not only choosing a chandelier, sconce, or decorative lighting package. The buyer is deciding how design intent, supplier proof, site constraints, production sequence, and final acceptance will stay aligned.
The common failure is to treat hotel chandelier shop drawing as a document or meeting that can be cleaned up late. By then, the ceiling interface, samples, control scenes, packaging, shipping terms, and installation responsibilities may already point in different directions.
Kinglong Lighting approaches this kind of article from the manufacturer’s side of the table. A useful lighting supplier should help the project team turn preferences into evidence, evidence into release gates, and release gates into a handover file the hotel can actually operate.
Key Takeaways
- Proof beats preference: every key decision should name the evidence needed before release.
- The supplier file must be useful on site: drawings, samples, labels, and access notes should reduce installation questions.
- Local review still matters: factory information supports local professionals but does not replace them.
- Acceptance should be defined early: final quality cannot be judged only by whether the fixture turns on.
- Soft CTA belongs before FAQ: buyers should know what to send when they ask Kinglong Lighting for help.
A shop drawing is a risk document, not only a picture
If a chandelier shop drawing cannot be installed, serviced, packed, and commissioned as shown, it is not ready for production.
A hotel chandelier shop drawing is where design intent meets the physical building. It should show more than a beautiful outline. It should let the project team test whether the fixture fits the ceiling, carries safely, connects electrically, arrives in usable modules, and can be accepted after installation.
The ASCE Hazard Tool is useful because site-specific structural parameters belong with qualified engineering review. For hotel designers, procurement teams, and project engineers reviewing chandelier shop drawings, that turns the discussion into a seven-point drawing review that identifies owners before production release instead of a preference argument.
Checkpoint 1: dimensions and visual envelope
The drawing must show the exact size the room is being asked to accept.
The UL 1598 standard page is useful because decorative chandeliers remain luminaires that need product and installation evidence. For hotel designers, procurement teams, and project engineers reviewing chandelier shop drawings, that turns the discussion into dimensioned plan, elevation, drop, clearance, and view envelope instead of a preference argument.
Diameter should be tested against the room, not the catalogue
Dimension review becomes important when the fixture diameter looks acceptable on a cropped drawing. The project team should not treat this as a late coordination detail, because the choice changes cost, sequence, drawing responsibility, and the evidence a buyer can reasonably approve. If the issue is left open, the supplier may quote an attractive fixture while the building team silently carries an unresolved constraint.
The practical answer is to name room plan, elevation, furniture layout, and main sightlines before release. That proof gives the owner a decision rule: change diameter before production if the visual envelope blocks circulation or proportion. It also keeps Kinglong Lighting’s role honest. The factory can provide drawings, samples, product information, packing logic, and manufacturing options, while local professionals still confirm the building, code, and site-specific safety requirements.
Drop length needs clearance and view proof
Drop review becomes important when the drawing gives an attractive suspension height but not the guest clearance or view impact. The project team should not treat this as a late coordination detail, because the choice changes cost, sequence, drawing responsibility, and the evidence a buyer can reasonably approve. If the issue is left open, the supplier may quote an attractive fixture while the building team silently carries an unresolved constraint.
The practical answer is to name bottom elevation, clear height, sightline, and maintenance access marks before release. That proof gives the owner a decision rule: approve the drop only when it works from entry, seating, and service positions. It also keeps Kinglong Lighting’s role honest. The factory can provide drawings, samples, product information, packing logic, and manufacturing options, while local professionals still confirm the building, code, and site-specific safety requirements.
Checkpoint 2: ceiling interface and suspension
The drawing must connect the decorative object to a real support path.
The NFPA 70 National Electrical Code page is useful because electrical installation decisions need qualified local code review. For hotel designers, procurement teams, and project engineers reviewing chandelier shop drawings, that turns the discussion into canopy, anchors, suspension points, fixture weight, and engineering owner instead of a preference argument.
Canopy size must solve more than cover
Canopy review becomes important when the canopy is drawn as a decorative cap without access, alignment, or ceiling coordination. The project team should not treat this as a late coordination detail, because the choice changes cost, sequence, drawing responsibility, and the evidence a buyer can reasonably approve. If the issue is left open, the supplier may quote an attractive fixture while the building team silently carries an unresolved constraint.
The practical answer is to name canopy diameter, access need, driver relation, and ceiling finish boundary before release. That proof gives the owner a decision rule: revise the canopy if it hides unresolved service or support decisions. It also keeps Kinglong Lighting’s role honest. The factory can provide drawings, samples, product information, packing logic, and manufacturing options, while local professionals still confirm the building, code, and site-specific safety requirements.
Suspension points need named responsibility
Suspension review becomes important when the fixture weight is known but the building support path is not. The project team should not treat this as a late coordination detail, because the choice changes cost, sequence, drawing responsibility, and the evidence a buyer can reasonably approve. If the issue is left open, the supplier may quote an attractive fixture while the building team silently carries an unresolved constraint.
The practical answer is to name fixture weight, point load notes, suspension locations, and local structural review before release. That proof gives the owner a decision rule: hold production until the building team has an answer for the support path. It also keeps Kinglong Lighting’s role honest. The factory can provide drawings, samples, product information, packing logic, and manufacturing options, while local professionals still confirm the building, code, and site-specific safety requirements.
Checkpoint 3: electrical and control notes
A shop drawing should help the local team connect and commission the fixture.
The OSHA aerial lifts page is useful because overhead installation and service need planned access, qualified operation, and site hazard awareness. For hotel designers, procurement teams, and project engineers reviewing chandelier shop drawings, that turns the discussion into driver location, voltage, dimming, circuits, and zone labels instead of a preference argument.
Driver location is a drawing decision
Driver review becomes important when drivers are listed but not located or made serviceable. The project team should not treat this as a late coordination detail, because the choice changes cost, sequence, drawing responsibility, and the evidence a buyer can reasonably approve. If the issue is left open, the supplier may quote an attractive fixture while the building team silently carries an unresolved constraint.
The practical answer is to name driver position, access route, heat assumption, and replacement method before release. That proof gives the owner a decision rule: do not approve sealed service parts unless the project knowingly accepts that risk. It also keeps Kinglong Lighting’s role honest. The factory can provide drawings, samples, product information, packing logic, and manufacturing options, while local professionals still confirm the building, code, and site-specific safety requirements.
Control zones should match the scene plan
Control review becomes important when the chandelier is wired as one object while the hotel expects multiple scenes. The project team should not treat this as a late coordination detail, because the choice changes cost, sequence, drawing responsibility, and the evidence a buyer can reasonably approve. If the issue is left open, the supplier may quote an attractive fixture while the building team silently carries an unresolved constraint.
The practical answer is to name zone labels, circuit logic, dimming protocol, and scene intent before release. That proof gives the owner a decision rule: align wiring with hotel operation before production. It also keeps Kinglong Lighting’s role honest. The factory can provide drawings, samples, product information, packing logic, and manufacturing options, while local professionals still confirm the building, code, and site-specific safety requirements.
Checkpoint 4: finish, sample, and module evidence
The drawing should point to the approved sample, not replace it.
Finish codes need a physical reference
Finish review becomes important when the shop drawing uses a finish code that means different things to different teams. The project team should not treat this as a late coordination detail, because the choice changes cost, sequence, drawing responsibility, and the evidence a buyer can reasonably approve. If the issue is left open, the supplier may quote an attractive fixture while the building team silently carries an unresolved constraint.
The practical answer is to name finish master number, sample photo, and approved viewing condition before release. That proof gives the owner a decision rule: release production from a sample reference, not a word such as champagne or bronze. It also keeps Kinglong Lighting’s role honest. The factory can provide drawings, samples, product information, packing logic, and manufacturing options, while local professionals still confirm the building, code, and site-specific safety requirements.
Module seams should be intentional
Module review becomes important when the factory divides the chandelier for production or shipping without visual review. The project team should not treat this as a late coordination detail, because the choice changes cost, sequence, drawing responsibility, and the evidence a buyer can reasonably approve. If the issue is left open, the supplier may quote an attractive fixture while the building team silently carries an unresolved constraint.
The practical answer is to name module seam locations, connector detail, label logic, and assembly sequence before release. That proof gives the owner a decision rule: approve module divisions as part of design quality, not only packing convenience. It also keeps Kinglong Lighting’s role honest. The factory can provide drawings, samples, product information, packing logic, and manufacturing options, while local professionals still confirm the building, code, and site-specific safety requirements.
Checkpoint 5: installation and commissioning path
The drawing should be readable by the team that installs and accepts the fixture.
The WBDG building commissioning page is useful because commissioning turns design intent into verified operation and handover evidence. For hotel designers, procurement teams, and project engineers reviewing chandelier shop drawings, that turns the discussion into access method, lift assumptions, installation sequence, and acceptance checks instead of a preference argument.
Access must match the drawing
Installation review becomes important when the drawing assumes a clean installation but the site has finished floors, low access, or occupied areas. The project team should not treat this as a late coordination detail, because the choice changes cost, sequence, drawing responsibility, and the evidence a buyer can reasonably approve. If the issue is left open, the supplier may quote an attractive fixture while the building team silently carries an unresolved constraint.
The practical answer is to name lift route, protection note, staging area, and installation sequence before release. That proof gives the owner a decision rule: resolve access before the crates leave the factory. It also keeps Kinglong Lighting’s role honest. The factory can provide drawings, samples, product information, packing logic, and manufacturing options, while local professionals still confirm the building, code, and site-specific safety requirements.
Commissioning closes the drawing
Commissioning review becomes important when the drawing is archived once production starts. The project team should not treat this as a late coordination detail, because the choice changes cost, sequence, drawing responsibility, and the evidence a buyer can reasonably approve. If the issue is left open, the supplier may quote an attractive fixture while the building team silently carries an unresolved constraint.
The practical answer is to name final height, scene test, alignment, visible damage, and handover checks before release. That proof gives the owner a decision rule: use the drawing as the reference for final acceptance. It also keeps Kinglong Lighting’s role honest. The factory can provide drawings, samples, product information, packing logic, and manufacturing options, while local professionals still confirm the building, code, and site-specific safety requirements.

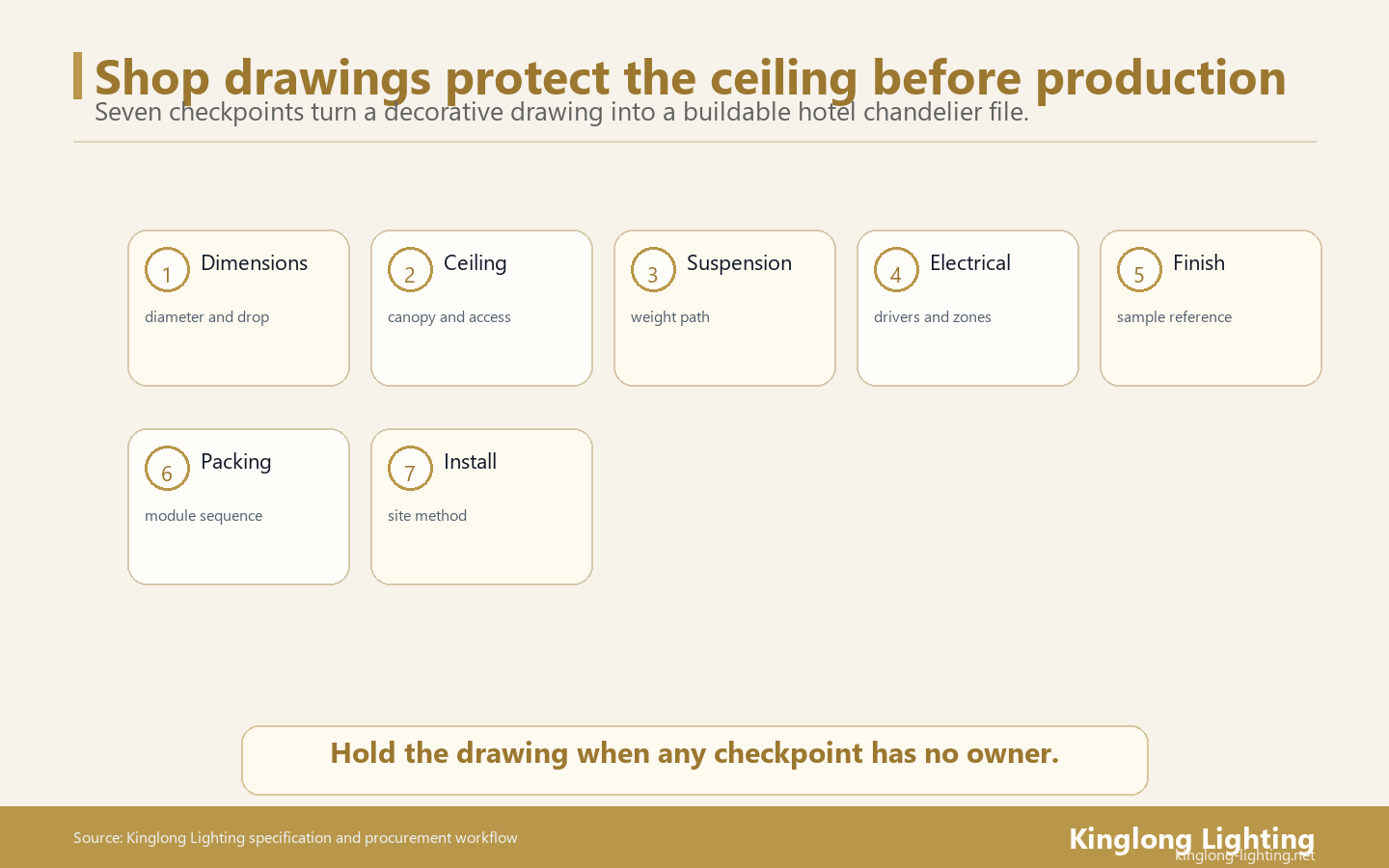

Seven shop drawing checkpoints
Use this table as a compact release gate. It is not a legal contract, but it shows which proof should be visible before the next project stage.
| Decision | Risk if vague | Proof to request | Release rule |
|---|---|---|---|
| Dimensions | scale surprise | plan and elevation | approve room envelope |
| Ceiling | canopy conflict | interface and access | hold vague details |
| Suspension | support gap | weight and points | name structural owner |
| Electrical | site wiring conflict | driver and zone notes | confirm local review |
| Installation | crate or lift failure | module and route plan | match drawing to site |
How Kinglong Lighting supports hotel chandelier shop drawing
Kinglong Lighting can support hotel chandelier shop drawing by connecting design intent to factory evidence: drawings, finish samples, driver notes, packing logic, installation assumptions, and handover records. The useful output is a project file that reduces avoidable questions for designers, procurement teams, contractors, and owners.
Kinglong Lighting can connect this work to the hotel lighting solution and the custom chandelier manufacturing workflow. The point is not to turn a technical article into a catalogue page. The point is to give hotel designers, procurement teams, and project engineers reviewing chandelier shop drawings a practical next step when the project file already shows real risk.
When the issue reaches budget, sample, delivery, or site timing, the safer action is to send the hotel chandelier shop drawing brief with drawings, destination, room schedule, target finish, control expectation, and the proof items already requested in this article.
Soft next step for shop drawing review
The next step should be a focused file, not a vague request for price. Buyers get better answers when they send the supplier the same evidence they expect the supplier to return.
- Mark every unknown as owner, supplier, engineer, contractor, or installer.
- Check diameter and drop against real views.
- Confirm canopy, support, and driver access.
- Tie finish codes to approved samples.
- Use the drawing again during installation acceptance.
FAQ
Who should review a hotel chandelier shop drawing?
The design team, procurement team, local engineer, electrician, installer, and supplier should all review the drawing from their own risk angle. A drawing approved only by design may still fail ceiling, electrical, access, or maintenance requirements.
What is the biggest shop drawing risk?
The biggest risk is an interface that nobody owns: ceiling support, canopy access, driver location, module route, or control zones. These gaps are expensive because they appear after design confidence is already high.
Should shop drawings include installation sequence?
For large hotel chandeliers, yes. The drawing or related installation file should show module labels, packing order, lifting logic, driver access, and final commissioning checks. That makes the drawing useful on site.
Can Kinglong revise drawings after sample approval?
Yes, but the change should be controlled. If sample approval changes dimensions, finish, module, driver location, or canopy detail, Kinglong should update the current drawing set and mark what changed before production release.
